The Rebuild of a Legend
"Chapter 6 - Suspension Installation"

Click on the following images to see larger photos

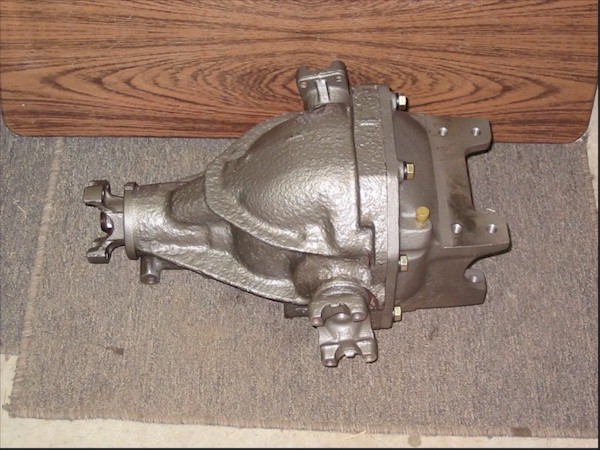

Differential Completely rebuilt positraction differential with new 3.08 gears.

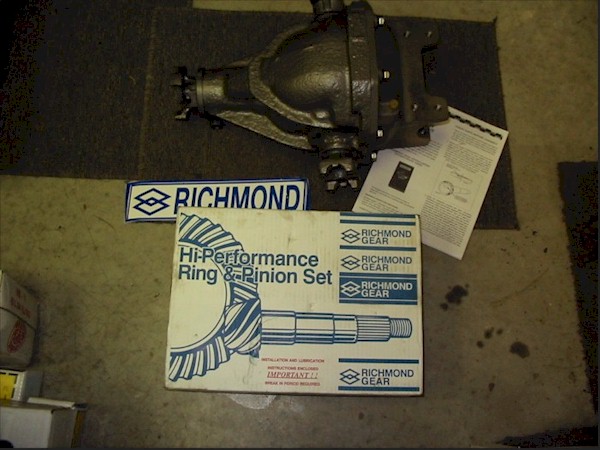

Richmond gear set Richmond High-Performance gear set.

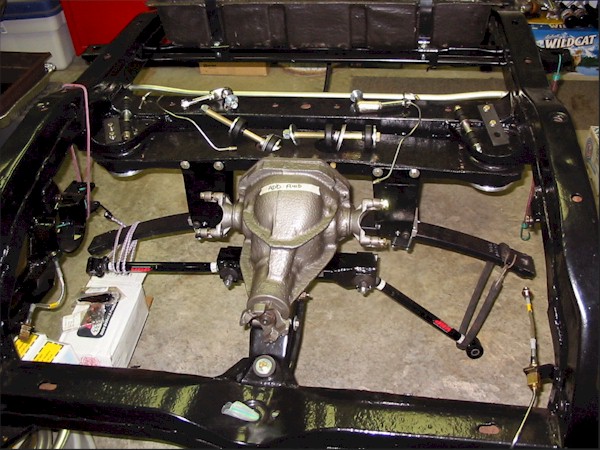

Rear Suspension Differential is mounted and "Vette Brakes Performance Plus Suspension System" is partially installed.

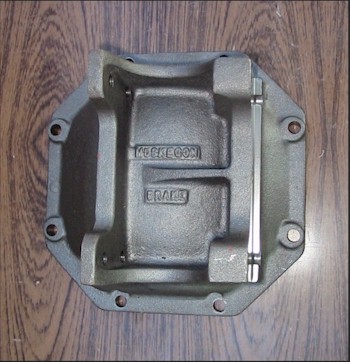

This new Muskegon differential cover is "very" heavy-duty. One of the threads in the original was stripped anyway.

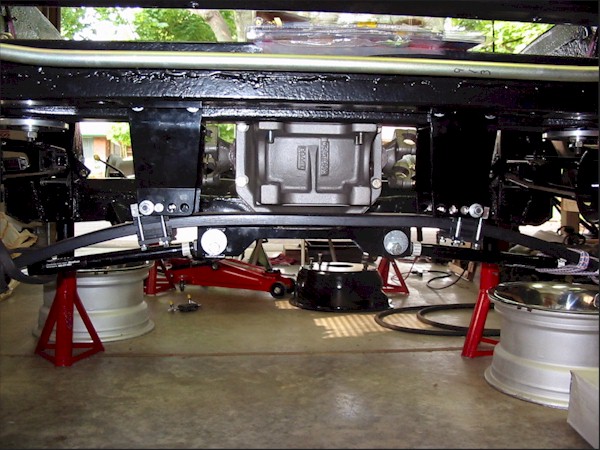

Rear Suspension Rear view showing heavy-duty Muskegon differential cover.

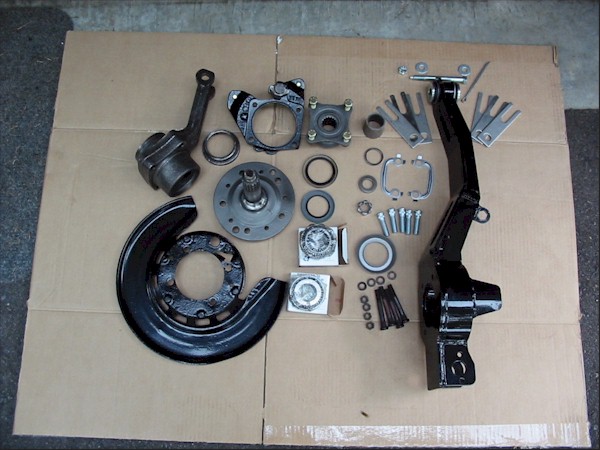

Trailing arm / spindle Driver's side offset trailing arm and spindle components.

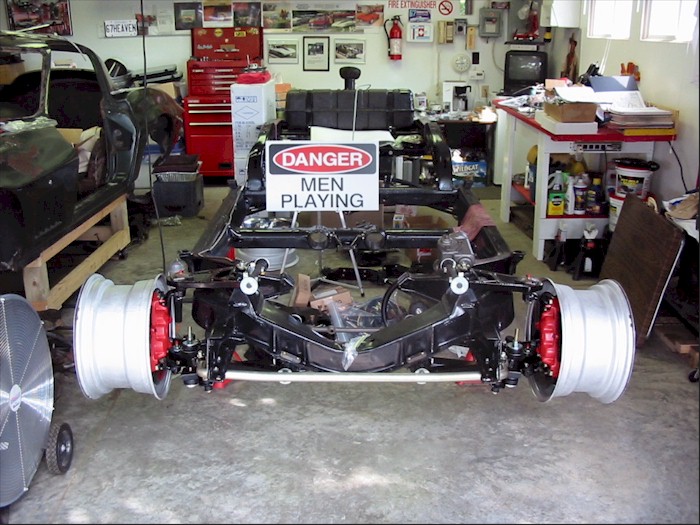

Front Suspension The front portion of the "Vette Brakes Performance Plus Suspension System" is installed. New stainless-sleeved brake calipers and wheels are mounted.

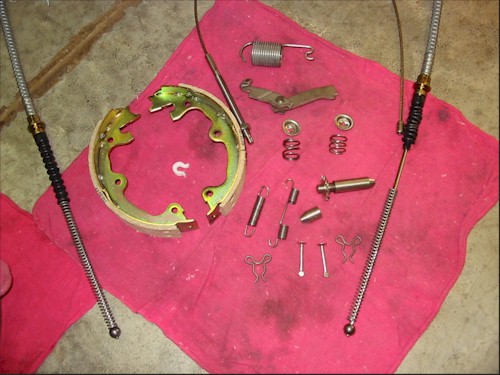

This photo shows the passenger side stainless emergency brake pieces and stainless cable.

Click on the above images to see larger photos
